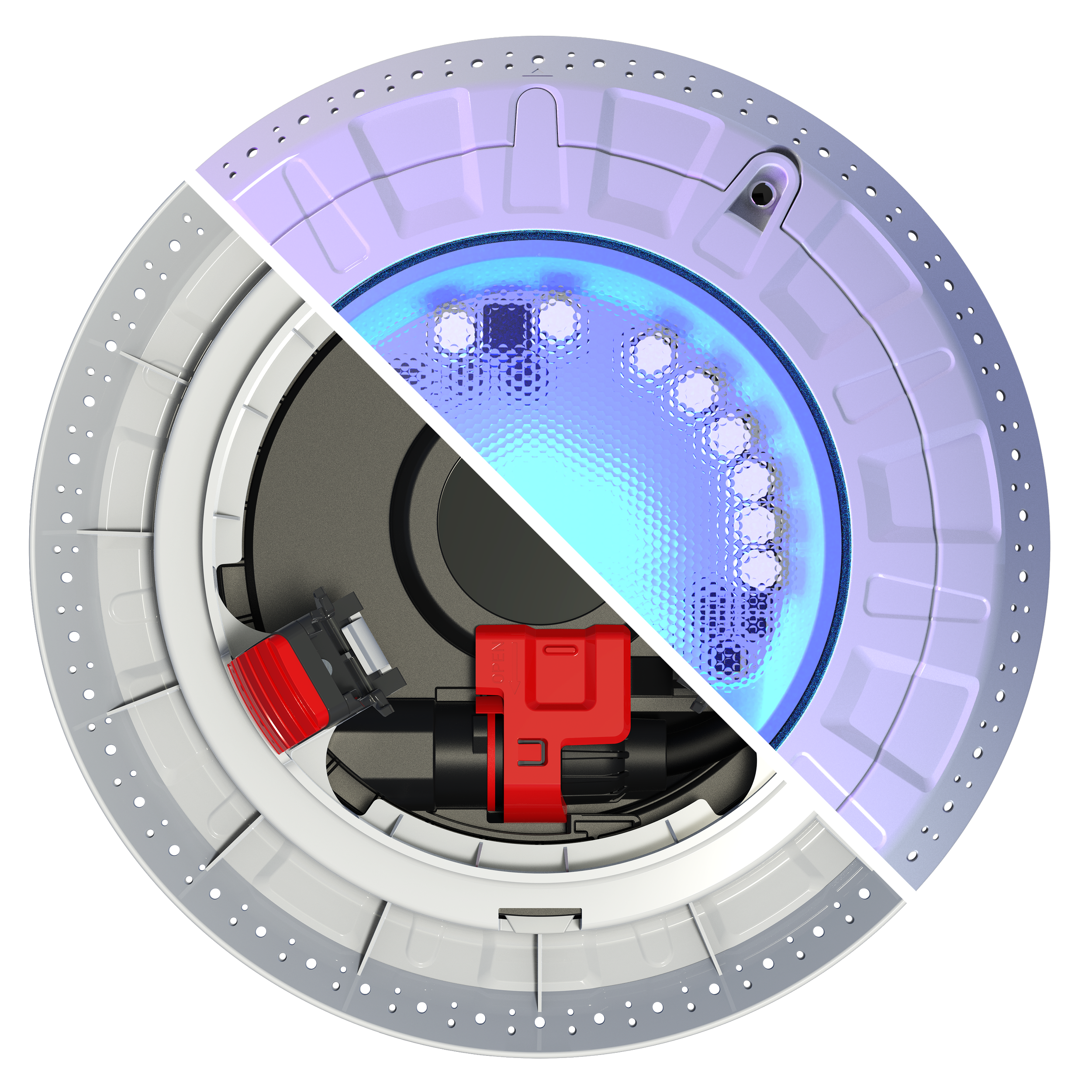

Universal 8” Replacement Pool Light
The only Retro-Fit light for 8” Niches you will ever need!
There’s no need for expensive repair work as Retro R8’s Universal Adaptor doesn’t rely on intact niche mounting hooks or screws for successful installation.
Suitable for Concrete & Vinyl
Universal
Mounting
Retro-fit 8” Niches in any condition
Retro R8 Universal Installation
Patented CAM-LOCK
There’s no need for expensive repair work, as Retro R8’s Universal Adapter doesn’t rely on intact niche mounting hooks or screws for installation.
It’s patented CAM-LOCKS grip the niche wall as they’re fitted, pulling the light and niche together for a secure fit.
Quick connect plug
No more pulling cables during installation or servicing
Fast Installation with Quick Connect Plug
Say goodbye to changing cables forever with Retro R8’s Quick Connect Plug. Connecting to the existing pool light cable in the niche, the UL Listed Quick Connect Plug ensures fast and reliable installation while also enabling easier future servicing in the field.
Extra Safe Low Voltage 12VAC
The UL Listed Quick Connect Plug power offers safe low voltage connection for all pool users as well as for future servicing. Simply install a transformer for conversion.
Engineered for Durability and Brightness

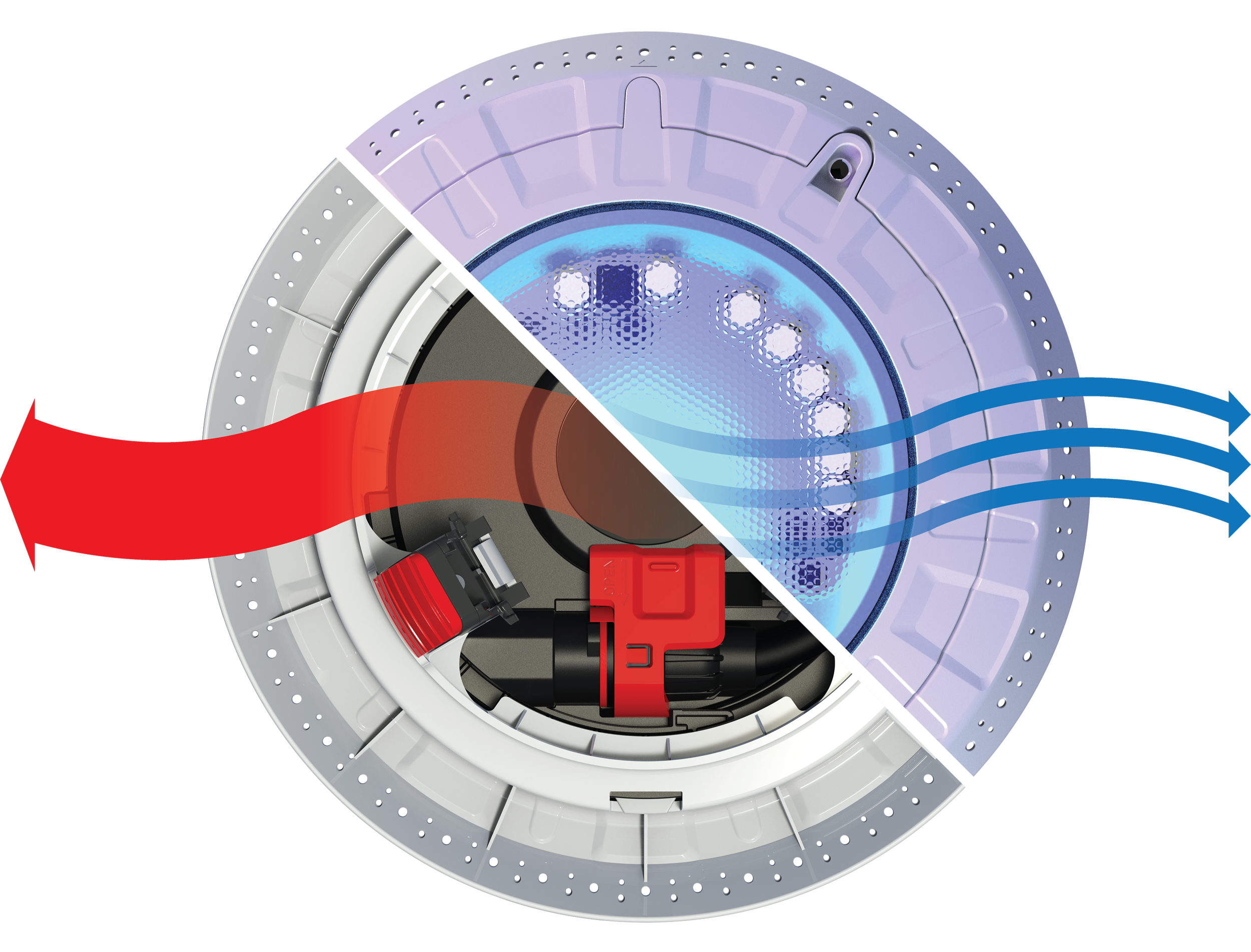

Advanced Cooling & Performance
High performance LED Lighting requires advanced cooling systems & Spa Electrics has been a pioneer in underwater heat sink technology since the introduction of LED lighting systems.
The Retro R8’s external heat sink design pushes the boundaries of thermal technology to harness the full cooling potential of the pool.
Brighter for Longer
Retro R8 is the brightest LED retro-fit on the market with over 3000 lumen output. The unique water cooled design harnesses the full cooling potential of your pools to maximize performance and extend product life.
Retain the brilliance of a 300W halogen, while improving the look and safety of your pool with the Retro R8.
Technical Specifications
| Light Source | Ceramic Light Engine (LED) |
| LED Colors | White: 3000k Warm or 4000k Daylight, 3200 lumen |
| Blue 1000 lumen | |
| MULTI PLUS RGB+W 3200 lumen | |
| MULTI PLUS Compatibility | Wall Switch Operation and all major pool controller brands including: Pentair IntelliTouch®, Haward Omnilogic®, Aqualink® |
| Niche Compatibility | All major brand niches including: American®, Anthony®, CHD®, Hayward®, Hydrel®, Jandy®, PacFab®, Paragon®, Pentair®, Purex®, Sta-Rite®, Swimquip® |
| Cable Compatability | Up to 12AWG size |
| IP Rating | IPX8 |
| Installation Types | Concrete, Vinyl |
| Voltage | 10.5 to 13 v AC |
| Wattage | 45 watts |
| Ambient Operating Temperature | 41 °F to +104 °F |
| Transformer | Requires 12V AC UL listed transformer. We recommend LVX Series Transformers |
| Warranty | 3 Year Manufacturers Warranty |
